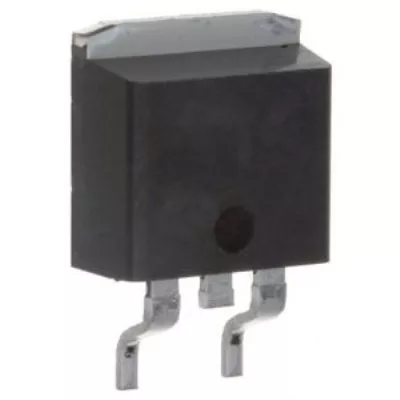

Диод STTH 2003CG
Производитель: ST
Описание
Описание
Описание
Lead Free Status / RoHS Status Lead free / RoHS Compliant
Voltage - Forward (Vf) (Max) @ If 1.25V @ 10A
Current - Reverse Leakage @ Vr 20µA @ 300V
Current - Average Rectified (Io) (per Diode) 10A
Voltage - DC Reverse (Vr) (Max) 300V
Reverse Recovery Time (trr) 35ns
Diode Type Standard
Скорость Fast Recovery =< 500ns, > 200mA (Io)
Diode Configuration 1 Pair Common Cathode
Тип монтажа Поверхностный
Корпус (размер) TO-263-3, D²Pak (2 leads + Tab), TO-263AB
Корпус D2PAK
Voltage - Forward (Vf) (Max) @ If 1.25V @ 10A
Current - Reverse Leakage @ Vr 20µA @ 300V
Current - Average Rectified (Io) (per Diode) 10A
Voltage - DC Reverse (Vr) (Max) 300V
Reverse Recovery Time (trr) 35ns
Diode Type Standard
Скорость Fast Recovery =< 500ns, > 200mA (Io)
Diode Configuration 1 Pair Common Cathode
Тип монтажа Поверхностный
Корпус (размер) TO-263-3, D²Pak (2 leads + Tab), TO-263AB
Корпус D2PAK
