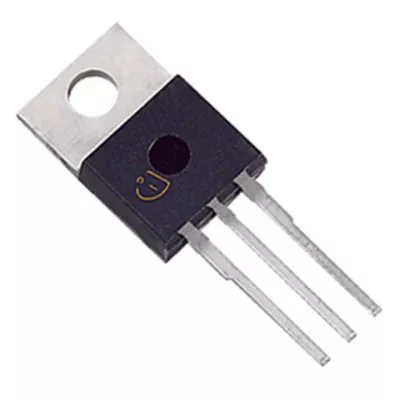

Симистор BT 138-600
Производитель: Philips
Описание
Описание
Описание
Voltage - Gate Trigger (Vgt) (Max) 1.5V
Current - On State (It (RMS)) (Max) 12A
Current - Non Rep. Surge 50, 60Hz (Itsm) 90A, 100A
Current - Gate Trigger (Igt) (Max) 10mA
Voltage - Off State 600V
Current - Hold (Ih) (Max) 30mA
Конфигурация Single
Тип монтажа Выводной
Triac Type Logic - Sensitive Gate
Lead Free Status / RoHS Status Lead free / RoHS Compliant
