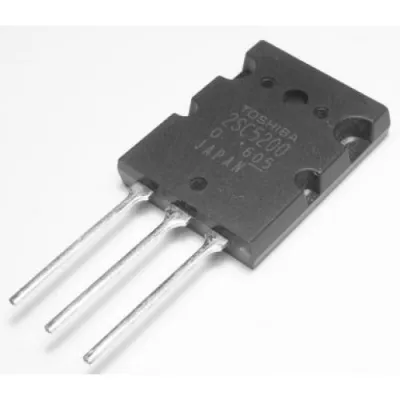

Транзистор 2SC 5200
Производитель: TOSHIBA
Описание
Описание
Описание
Voltage - Collector Emitter Breakdown (Max) 230V
Current - Collector (Ic) (Max) 15A
Transistor Type NPN
Lead Free Status / RoHS Status Lead free / RoHS Compliant
Vce Saturation (Max) @ Ib, Ic 3V @ 800mA, 8A
DC Current Gain (hFE) (Min) @ Ic, Vce 55 @ 1A, 5V
Power - Max 150W
Frequency - Transition 30MHz
Тип монтажа Выводной
Корпус (размер) TO-264-3
Current - Collector (Ic) (Max) 15A
Transistor Type NPN
Lead Free Status / RoHS Status Lead free / RoHS Compliant
Vce Saturation (Max) @ Ib, Ic 3V @ 800mA, 8A
DC Current Gain (hFE) (Min) @ Ic, Vce 55 @ 1A, 5V
Power - Max 150W
Frequency - Transition 30MHz
Тип монтажа Выводной
Корпус (размер) TO-264-3
